BMC conical filters for direct air intake can be installed on most types of engine by removing the original airbox. BMC direct induction conical filters are manufactured using a characteristic red rubber that allows the connection of the intake to be particularly resistant to both engine stress and heat without suffering from deformations caused by the high temperature. The special filtration mesh allows the production of filters with a power up to 700 HP without presenting problems of filter deformation.

BMC conical filters are available in two versions:

SA (Single Air) with simple lateral air flow - available in carbon top, metal top and plastic top versions;

TW (Twin Air) with central and lateral air flow - available in metal top and plastic top versions.



Technical features:

Twin Air

  • Flanges                                                     1
  • Flange Length (mm)                                 18
  • Flange Inside Diameter Ø1 (mm)             130
  • Base Outside Diameter Ø2 (mm)             151
  • Height - H2 (mm)                                      186
  • Height - H1 (mm)                                      143
  • Top Outside Diameter Ø3 (mm)                134
  • Top material – Finish                                 Plastic



General Info:

  • Filter Material                     Oiled Cotton Gauze
  • Flange Type                       Centred
  • Top style                             Twin Air
  • Flange Angle                      0
  • Washable                           Yes
  • Warranty                            2 Years Limited
  • EAN                                   8032872865793

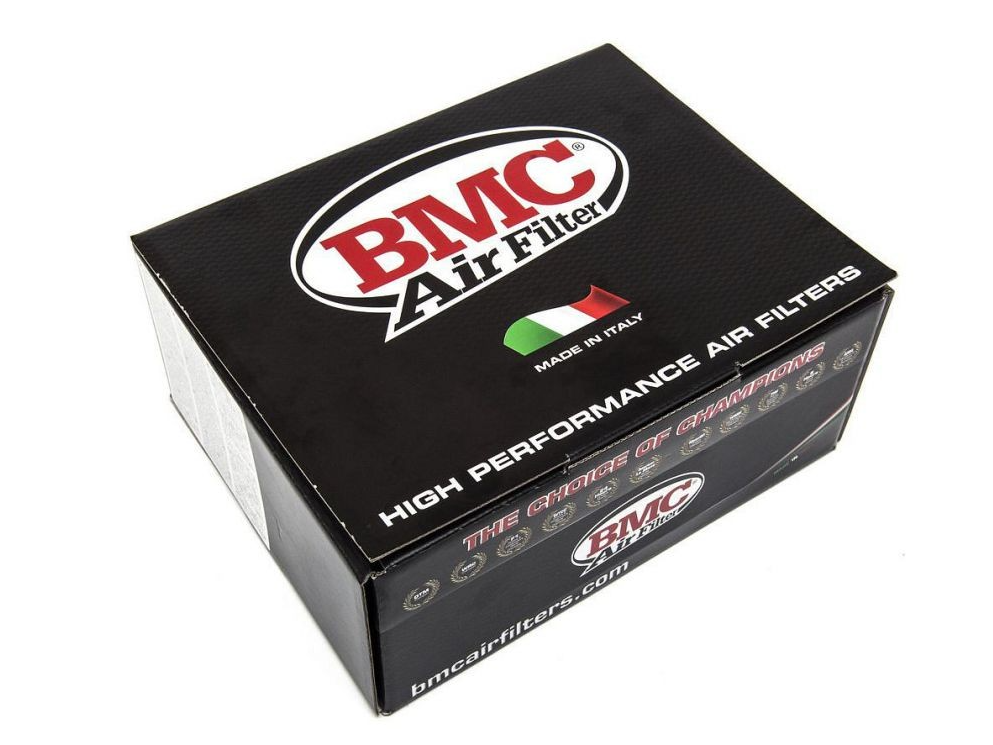

Product Box Info:

  • Product Box Width (mm)           186
  • Product Box Length (mm)          212
  • Product Box Height (mm)          194
  • Gross Weight (Kg)                     0.62



Made in Italy.

SKU FBTW130-140P
Barcode # 8032872865793
Brand BMC Air Filters
Shipping Weight 0.8000kg
